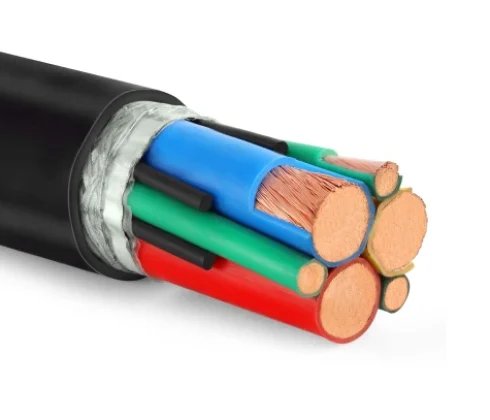

Composite/Hybrid Cables
Composite cables are electrical cables that combine multiple types of cables, such as power cables, control cables, and data cables, into a single, integrated cable. These cables are designed to simplify installation and reduce the amount of cabling required for complex systems by combining multiple functions into a single cable.When selecting composite cables, it is important to consider the specific requirements of the system, including the voltage and current requirements, the length of the cable needed, and any environmental factors that may impact the cable’s performance.

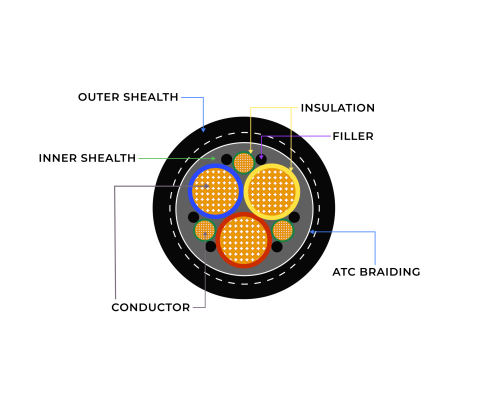

EPR insulated cables confirming / as per IS:14494/2019, IEC:60092 or customer requirement.
- Conductor : Multi Stranded / Annealed Tinned / Bare copper conductor.
- Conductor Screening : Semi-Conducting Compound / Semi Conducting Tape.
- Insulation : EPR/HEPR.
- Insulation Screening : Semi-Conducting Compound.
- Inner Sheath : PCP/ CSP /NBR-PVC.
- Reinforcement : Nylon / Cotton Yarn Braided.
- Screening/Braiding : ATC combined with Nylon Braiding individually and overall as per application wherever required.
- Outer Sheath : PCP/ CSP/NBR-PVC.
Multi Core cables up to 240 Sq.mm with split earth core.
- Multiple functions : Composite cables can combine power, control, and data cables into a single cable, reducing the number of cables needed in a system and simplifying installation.
- Customizable : Composite cables can be customized to meet specific application requirements, such as different types of power, control, and data cables.
- Durability : Composite cables are often designed to withstand harsh environmental conditions, including extreme temperatures, moisture, and mechanical stress.
- Cost-effective : Composite cables can be a cost-effective solution for complex systems, as they reduce the amount of cabling required and simplify installation.
- EPR : Ethylene Propylene Rubber.
- PCP : Polychloroprene.
- CSP : Chlorosulphonated Polyethylene
