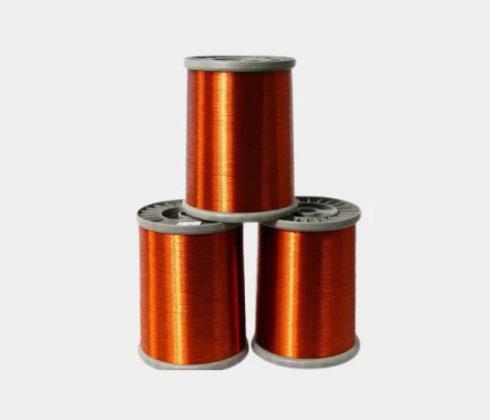

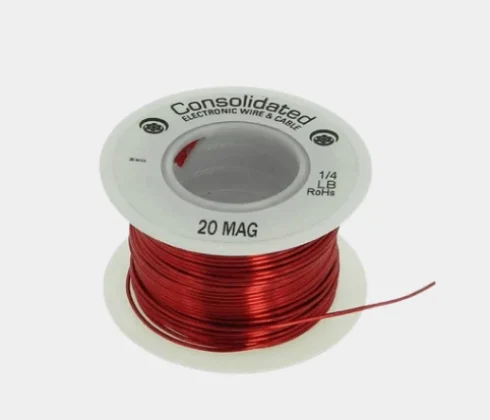

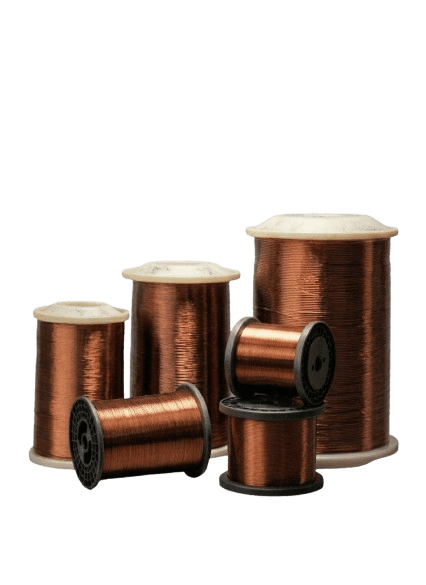

Enamelled copper wire — also called copper magnet wire or copper winding wire — is an electrolytic tough pitch (ETP) copper conductor coated with a continuous, pinhole-free polymer enamel insulation. The enamel film electrically isolates each conductor turn in a closely wound coil, enabling high turn counts in a compact winding window without conductor-to-conductor short circuits. It is the primary conductor in every AC induction motor, DC motor, power transformer, generator, alternator, solenoid, and electromagnetic coil manufactured globally. The choice of thermal class — Class B, F, H, or C — determines the maximum permissible winding temperature and therefore the power density and service life of the finished motor or transformer.

The thermal class defines the maximum continuous operating temperature the enamel insulation can withstand without degradation in service. Class B (130°C) uses polyester enamel and is specified for standard general-purpose motors and transformers in normal ambient environments. Class F (155°C) uses modified polyester or polyesterimide enamel and is the current standard specification for most industrial motors, offering a meaningful thermal margin over Class B for energy-efficient designs. Class H (180°C) uses polyesterimide overcoated with polyamide-imide (PAI) enamel and is specified for high-performance motors, inverter-duty motors, traction applications, and any winding subject to elevated ambient temperatures or high thermal cycling. Class C (220°C+) covers specialist high-temperature applications. Specifying a lower thermal class than the winding’s actual operating temperature is the primary cause of premature enamel degradation and inter-turn short circuit failures in motors and transformers.

These are the three principal enamel chemistries used across the standard thermal classes. Polyester enamel (Class B, 130°C) offers good mechanical properties, smooth surface for automatic winding, and cost-effective performance for standard applications. Polyesterimide enamel (Class F, 155°C) has a higher thermal index than polyester, better resistance to thermal shock, and improved performance under inverter-drive pulse voltage conditions — making it the preferred chemistry for variable frequency drive (VFD) connected motors. Polyesterimide overcoated with polyamide-imide (PAI) (Class H, 180°C) combines polyesterimide’s thermal performance with the PAI overcoat’s superior cut-through resistance, chemical resistance, and refrigerant resistance — the correct specification for hermetic compressor motors, traction motors, and high-stress winding applications. BMI manufactures each thermal grade using the specific enamel chemistry for that IS 13730 / IEC 60317 sub-standard — not a generic insulation relabelled across multiple grades.

BMI manufactures enamelled copper wire from 8 SWG to 42 SWG — covering the full range from heavy transformer and large motor windings at the thick end (8–16 SWG) through standard industrial motor windings in the mid-range (18–28 SWG) to fine-gauge coil windings for small motors, solenoids, and precision electromagnetic assemblies at the thin end (30–42 SWG). Custom SWG specifications outside this range and metric AWG equivalent sizes are available — confirm at enquiry stage with the required conductor diameter, build grade (single, medium, heavy), and thermal class.

Build grade refers to the thickness of the enamel insulation layer applied over the conductor. Single build (Grade 1) has the thinnest enamel layer — maximising the number of turns possible in a given winding window, preferred for fine-gauge windings where winding density is critical. Medium build (Grade 2) is the standard industrial specification — balancing turn count, dielectric strength, and mechanical robustness for general motor and transformer winding. Heavy build (Grade 3) applies the thickest enamel layer — used where maximum dielectric strength and mechanical protection of the enamel film are required, at the cost of reduced winding density. IS 13730 and IEC 60317 specify the conductor diameter, overall enamelled diameter limits, and dielectric withstand requirements for each build grade at each SWG — BMI holds all three build grades within these limits, verified per batch.

An enamel pinhole is a microscopic gap or discontinuity in the enamel film that creates a point of direct conductor-to-conductor contact (or reduced insulation) between adjacent turns in the winding. In service, a pinhole causes a turn-to-turn short circuit — which increases current in the shorted section, generates localised heat, accelerates enamel degradation in adjacent turns, and ultimately leads to winding failure. Pinhole failures typically appear early in winding life — within the first few hundred operating hours — and are difficult to distinguish from other winding faults without detailed forensic analysis. BMI addresses this with continuous in-line spark testing during the enamelling process on every metre of wire produced. Enamel pinholes are detected and the affected section eliminated before the wire reaches the spool — not discovered at warranty claims after the winding has failed in the field.
