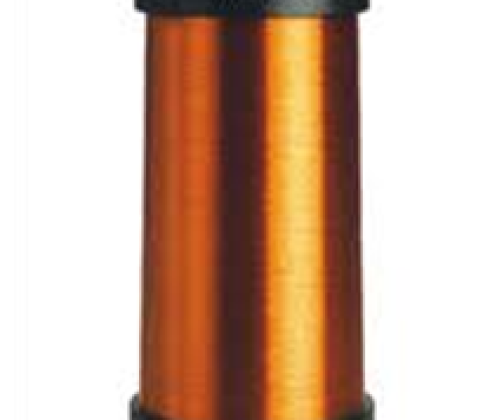

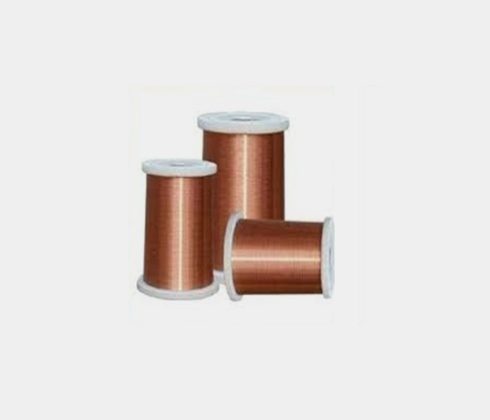

Enamelled Aluminium Wire
Enamelled aluminium wire is an aluminium conductor uniformly coated with a layer of insulating enamel. It serves as a cost-effective alternative to enamelled copper wire in applications where weight and budget are important considerations, while still meeting essential electrical and thermal performance requirements.
Features
Applications
Features
- Light weight : Approximately one-third the weight of copper, making it ideal for applications where weight reduction is critical.
- Cost-Efficient : More economical than copper, with competitive electrical performance for many applications.
- Thermally Resistant Insulation : Available in insulation classes from Class 130 to Class 220, with excellent thermal and dielectric properties.
- Good Windability : Suitable for high-speed coil winding with reduced insulation damage risk.
- Corrosion-Resistant Coating : The enamel layer protects the aluminium conductor from oxidation and environmental effects.
Applications
- Motors (especially in appliances and fan industries).
- Transformers.
- Ballasts.
- Inductors.
- Coils in consumer electronics.
Our Range of Products
Polyester Enamelled Round Aluminium Wire
Modified Polyester Enamelled Round Aluminium Wire
Polysesterimide Enamelled Round Aluminium Wire
Polysesterimide overcoated with Polyamide-imide Enamelled Round Aluminium Wire
Polyester Enamelled Round Aluminium Wire
- Thermal Class : 130 (B).
- Specification Copper : IS 13730.
- Range : 8 Swg to 36 Swg.
- Insulation Type : Grade – 1,2 & 3.
- Heat shock (°C) : 155.
- Cut Through (°C) : 240.
- Flexibility & Adherence : Very Good.
- Application : Transformers (distribution and power), Electric motors and generators, Fans, compressors, and HVAC systems, Automotive alternators and starter motors, Household appliances and pumps.
- Packing : PT-5 to PT-90 or as per Customer Requirement.
Modified Polyester Enamelled Round Aluminium Wire
- Thermal Class : 155.
- Specification Copper : IS 13730.
- Range : 8 Swg to 36 Swg.
- Insulation Type : Grade – 1,2 & 3.
- Heat shock (°C) : 175.
- Cut Through (°C) : 270.
- Flexibility & Adherence : Good.
- Application : Transformers (distribution and power), Electric motors and generators, Fans, compressors, and HVAC systems, Automotive alternators and starter motors, Household appliances and pumps.
- Packing : PT-4 to PT-90 or as per Customer Requirement.
Polysesterimide Enamelled Round Aluminium Wire
- Thermal Class : 180 (H).
- Specification Copper : IS 13730.
- Range : 8 Swg to 40 Swg.
- Insulation Type : Grade – 1,2 & 3.
- Heat shock (°C) : 200.
- Cut Through (°C) : 300.
- Flexibility & Adherence : Good.
- Application : Transformers (distribution and power), Electric motors and generators, Fans, compressors, and HVAC systems, Automotive alternators and starter motors, Household appliances and pumps.
- Packing : PT-4 to PT-90 or as per Customer Requirement.
Polysesterimide overcoated with Polyamide-imide Enamelled Round Aluminium Wire
- Thermal Class : 200 (DC).
- Specification Copper : IS 13730.
- Range : 10 Swg to 36 Swg.
- Insulation Type : Grade – 1,2 & 3.
- Heat shock (°C) : 220.
- Cut Through (°C) : 320.
- Flexibility & Adherence : Very Good.
- Application : Transformers (distribution and power), Electric motors and generators, Fans, compressors, and HVAC systems, Automotive alternators and starter motors, Household appliances and pumps.
- Packing : PT-4 to PT-90 or as per Customer Requirement.
