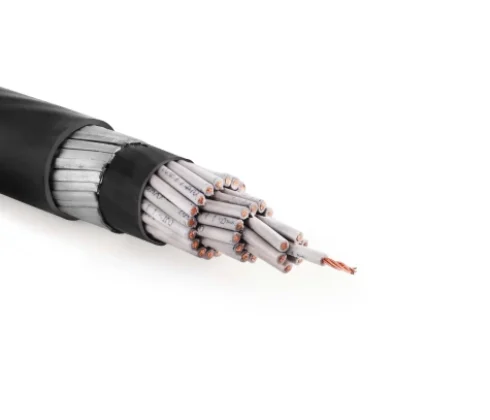

LT/MV PVC/XLPE Control Cables
Control cables are electrical cables used for transmitting control signals and low-level power in various industrial and commercial applications. These cables are used to control and coordinate the operation of electrical and mechanical systems, such as motors, pumps, and conveyor systems. Control cables come in different sizes and specifications to meet the specific needs of different applications, and they can be made of various materials, including copper & aluminum materials. The insulation material used in control cables must be able to withstand the harsh conditions of the application, including temperature, chemicals, and mechanical stress. Control cables must meet specific performance and safety standards to ensure that they can provide reliable control signals and to minimize the risk of damage or failure. When selecting control cables, it is important to consider the specific requirements of the application, including the type of signal being transmitted, the length of the cable needed, and any environmental factors that may impact the cable’s performance.
PVC / XLPE insulated cables conforming to IS:1554-1, IS:7098-1, BS:6346, IEC:60502, BS:5467, BS:7846 IEC60227, BS:6004, BS:6500, IS:694 and Customer specific requirement.

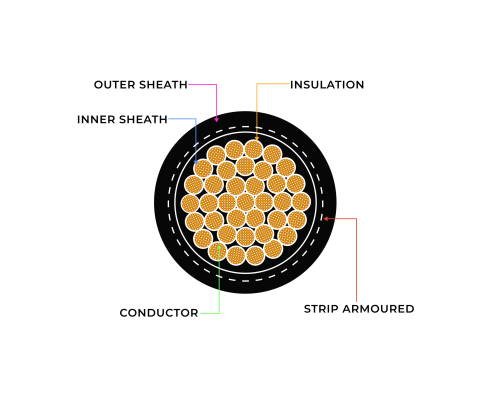

- Conductor: Solid/ stranded, flexible, circular copper.
- Insulation: PVC-GP / HR, XLPE, FRLS-H, LSZH.
- Inner Sheath: PVC-GP / HR/ FR / FRLS-H, LSZH.
- Armour (for Armoured Cables): Galvanised steel wire / strip / tape.
- Outer Sheath: PVC-GP / HR/ FR / FRLS-H, LSZH
Generally with Sizes 1.5 Sq.mm, 2.5 Sq.mm, 4.0 Sq.mm and up to 61 cores.
- Conductor material: Control cables are typically made of copper, which is a good conductor of electricity.
- Insulation material: Control cables are insulated with materials such as PVC (Polyvinyl chloride), XLPE (Cross-linked polyethylene), or FEP (Fluorinated ethylene propylene), which provide good electrical insulation and mechanical strength.
- Color coding: Control cables may be color-coded to facilitate identification and installation.
- Flexibility: Control cables are designed to be flexible, allowing them to be easily routed and installed in tight spaces.
- PVC: Polyvinyl Chloride.
- XLPE: Cross Linked Polyethylene.
- HR: Heat resistant.
- FR: Flame Retardant.
- FRLS: Flame Retardant Low Smoke.
- LSZH: Low Smoke Zero Halogen.
- GP: General Purpose.
