Single Core and Multicore Flexible Cables

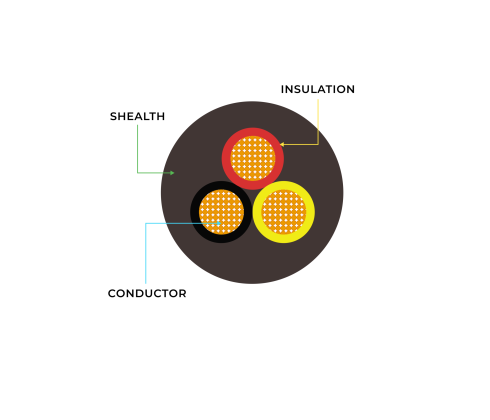

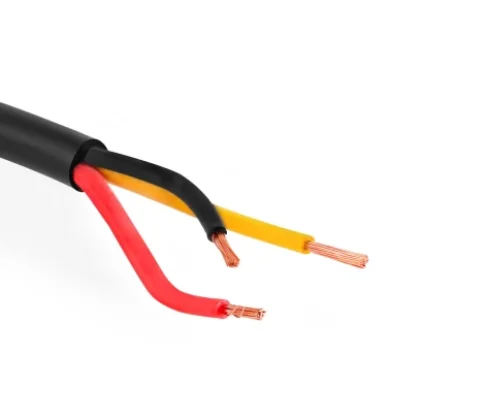

Single-core and multicore flexible cables are types of electrical cables that are commonly used in a variety of applications, including power distribution, machinery, and automation systems. Single-core flexible cables consist of a single conductor surrounded by insulation and a protective outer jacket. They are typically used in applications where the cable will be bent or twisted, such as in moving machinery or equipment. Multicore flexible cables, on the other hand, contain multiple conductors within a single outer jacket. These cables are often used in applications where multiple connections are required, such as in control panels or automation systems. When selecting a single-core or multicore flexible cable, it’s important to consider the specific needs of your application, including the voltage and current requirements, the length of the cable needed, and any environmental factors that may impact the cable’s performance.
PVC-GP, HR-FR, FR-PVC, HR-PVC, FRLS-H, LSOH Insulated conflrming/as per IS:694/2010 /BS:6004/ BS:6007/ IEC:60227-3/ BS:6500/ BS:7919/ BS:7211/ BS:6231/BS:6141.
- Conductor : Solid(Class-l), Stranded (Class-2),Annealed Bare / Tinned High conductivity copper conductor confirming to IS:8130, BS:6360or IEC:60228.
- Insulation : PVC-GP/HR-FR/FR-PVC/HR-PVC/FRLS-H/LSOH.
- Colour : Red, Yellow, Blue, Black, Green, Grey, Green/Yellow, White or as per customer.
- Voltage : 300 / 500 Volts, 450/750 Volts, 1100 Volts.
- Operating Temperature : 70°C& 85°C
0.5 to 300 Sq.mm unsheathed or as per customer requirement.
- Flexibility : Both types of cables are designed to be flexible and easy to maneuver, allowing them to be bent and twisted without damaging the internal wiring.
- Durability : Flexible cables are often made with durable materials that can withstand abrasion, chemicals, and other harsh environmental conditions.
- Customization : These cables can be customized to meet specific electrical requirements, including the number of conductors, the size of the conductors, and the type of insulation and outer jacket used.
- PVC : Polyvinyl Chloride.
- HR : Heat resistant.
- FR : Flame Retardant.
- FRLS : Flame Retardant Low Smoke.
- LSZH : Low Smoke Zero Halogen.
