Submersible Flat Cables
Submersible pump cables are electrical cables specifically designed for use in submersible pumps. The pumps which are submerged in water or other liquids. These cables are typically made with materials that are resistant to water, moisture, and chemicals, and are designed to be durable and long-lasting in harsh environments. When selecting a submersible pump cable, it’s important to consider the specific needs of your application, including the type of liquid being pumped, the length of the cable required, and the electrical requirements of the pump.

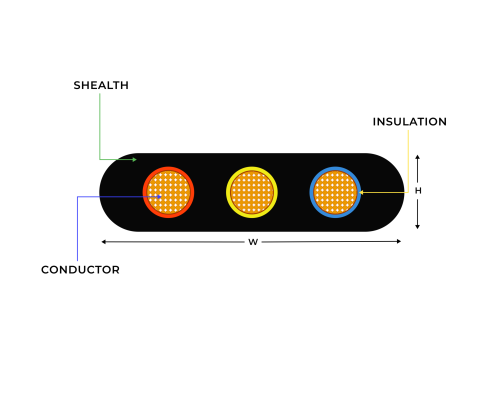

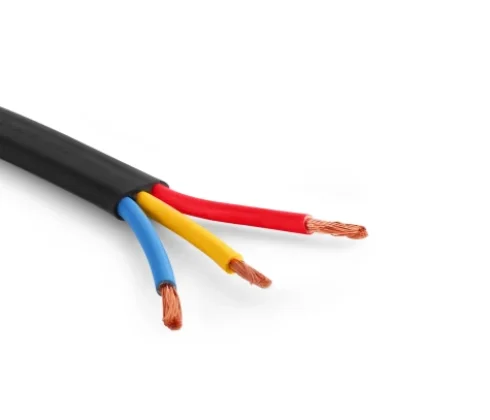

PVC Insulated PVC Sheath or HR-PVC Insulated HR-PVC Sheathed confirming / as per lS:694:2010 Three & Four Core Flat Cables.
- Conductor : Stranded, Flexible (Class-5 and Class-6) Annealed High conductivity copper conductor confirming to IS:8130.
- Insulation : PVC/ HR-PVC/XLPE Sheath PVC/HR-PVC.
- Voltage : 450/750/1100 Volts.
- Operating Temperature : 70°C & 85°C.
- Colours Generally Black or as per customer requirement.
1.0, 1.5, 2.5, 4.0, 6.0, 10, 16, 25, 35, 50, 70, 95, Sq.mm or as per customer requirement.
- Waterproofing : Submersible pump cables are designed to be waterproof, preventing water and moisture from entering the cable and causing damage to the internal wiring.
- Chemical resistance : These cables are often made with materials that are resistant to chemicals commonly found in liquids such as oil, gasoline, and sewage.
- Strength and durability : Submersible pump cables are built to withstand the harsh conditions of submersion in liquids, and are typically made with strong, durable materials that can resist abrasion and wear.
- Flexibility : These cables may need to be bent or twisted to fit into tight spaces within the pump or pump control panel, so they are often designed to be flexible and easy to maneuver.
- PVC : Polyvinyl Chloride.
- XLPE : Cross Linked Polyethylene.
- HR : Heat resistant.
- FR : Flame Retardant.
- FRLS : Flame Retardant Low Smoke.
- LSZH : Low Smoke Zero Halogen.
