LV & MV Rubber Composite Cables
Integrated power, control and signal for mining, cranes, steel plants and industrial equipment.
BMI Cables manufactures low-voltage (LV) and medium-voltage (MV) rubber composite cables that bring power, control and signal elements together within one cable assembly.
Each construction is selected for the equipment’s electrical requirements, operating environment and cable-handling arrangement. Earth-continuity and pilot conductors are incorporated where required by the approved design.
What Is a Rubber Composite Cable?
A rubber composite cable combines power conductors with control and signal elements within a common cable assembly. This integrated construction can simplify routing and reduce the number of separately managed cables on industrial equipment.
Our LV & MV Rubber Composite Cable Range
LV Rubber Composite Cables — Power, Control & Signal
BMI’s LV rubber composite cables integrate low-voltage power conductors with control and signal elements in a common cable assembly.
Core combinations, screening and rubber construction are selected for the connected equipment and operating conditions. Earth-continuity and pilot conductors are included where required by the equipment and approved cable design.
Product selection considers
- Power-circuit voltage and load
- Control-circuit voltage and conductor requirements
- Signal type and electrical characteristics
- Required earth-continuity and pilot arrangement
- Installation conditions and cable movement
Mining Equipment Composite Cable — Rubber Sheathed
BMI’s MV rubber composite cables integrate medium-voltage power conductors with control and signal elements within an engineered cable assembly.
The insulation system, circuit separation, screening and termination arrangement are selected for the specified power voltage, auxiliary circuits and operating duty.
Available voltage grades, core combinations and operating limits are specified in the approved product datasheet.
Custom Rubber Composite Cables for OEMs & Projects
For equipment and projects requiring a particular combination of circuits, BMI reviews the electrical, mechanical and environmental requirements before confirming a suitable construction.
Custom enquiries should identify the power, control and signal functions, together with the required earth-continuity or pilot arrangement. Proposed designs are subject to engineering feasibility and the applicable product requirements.
Where Rubber Composite Cables Are Used
The performance and engineering characteristics that determine composite cable quality, and why each one matters in industrial, mining, and infrastructure applications.

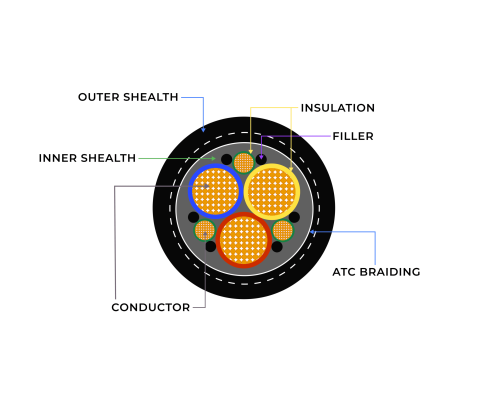

Construction & Engineering Features
Rubber Composite Cable — Technical Range
Power, control and instrumentation cores in one EPR-insulated cable, 1.1 kV to 11 kV
| Technical Detail | Range / Options |
|---|---|
| Power-circuit voltage grades | 1.1 kV · 3.3 kV · 6.6 kV · 11 kV |
| Conductor material | Tinned copper |
| Power conductor size | Up to 400 mm² |
| Cable configuration | Power, control and instrumentation cores, configured to requirement |
| Insulation | EPR |
| Sheathing options | NBR/PVC · PCP · CSP · FRLSH* — Selected to suit the cable design and application |
| Overall diameter | Up to 100 mm |
| Movement duty | Confirmed for the selected construction |
LV & MV Cable Selection
| Selection item | LV rubber composite cable | MV rubber composite cable |
|---|---|---|
| Power circuit | Selected for the required LV rating and load | Selected for the required MV rating and load |
| Control elements | Specified by circuit voltage, core count and size | Specified by circuit voltage, core count and size |
| Signal elements | Selected for the required signal characteristics | Selected for the required signal characteristics and complete circuit arrangement |
| Insulation and screening | Defined by the approved construction | Defined by the approved MV construction and auxiliary-circuit requirements |
| Earth and pilot conductors | Included as required by the approved design | Included as required by the approved design |
| Movement suitability | Confirmed for the selected construction | Confirmed for the selected construction |
| Detailed ratings and dimensions | Refer to the approved LV datasheet | Refer to the approved MV datasheet |
Standards & Product Documentation
The applicable standard depends on the cable construction, voltage and intended use. Relevant references may include:
| Reference | Area covered |
|---|---|
| IS 9968 — applicable part | Elastomer-insulated cables within the voltage scope of the relevant part |
| IS 14494 | Elastomer-insulated flexible cables for use in mines |
| IS 8130 | Conductors for insulated electric cables and flexible cords |
The applicable edition, cable type and conformity requirements should be identified in the product documentation.
Where a BIS licence or other product approval is specified, its scope must cover the offered construction. Quality-management certification should be presented separately from product performance and approval claims.
FAQ - Composite Cable
LV and MV identify the voltage class of the power circuit. Both product families can integrate power, control and signal elements.
Their insulation systems, screening, dimensions and testing requirements depend on the selected construction and application.
Yes, when the complete cable is specifically designed for that combination.
The construction must provide the appropriate insulation, separation and screening, with suitable terminations for the respective circuits. The control and signal circuits retain their own specified electrical requirements.
BMI offers LV and MV rubber composite cable constructions. The available power ratings, core sizes and control/signal combinations are confirmed against the application and approved product datasheet.
Share the equipment specification so that the appropriate construction can be identified.
Not automatically. These handling arrangements impose different mechanical demands.
Select the cable for the actual movement, bend radius, tension, travel and operating conditions stated in its datasheet.
Earth-continuity conductors provide the protective-earth connection to the equipment.
Where specified, a pilot conductor forms part of a monitoring loop connected to compatible protection equipment. The monitoring system can initiate disconnection when it detects a fault within its designed monitoring functions.
Screening can be specified according to the signal and interference requirements of the approved construction.
The signal type, electrical characteristics and termination arrangement must be considered together. A generic screened element should not be assumed suitable for every communication protocol.
The relevant standard depends on voltage, construction and application. References may include the applicable part of IS 9968, IS 14494 for mining cables and IS 8130 for conductors.
The product documentation identifies the requirements applicable to the offered cable.
