LT/MV Elastomeric (Rubber) Power & Control Cables
Submersible winding wire is specially designed for winding submersible motor stators used in deep well and borewell pumps. This wire is wrapped with a high-quality dual / three-layer comprising Polyester Film overcoated with BOPP (Biaxially Oriented Polypropylene). The combination offers excellent electrical insulation, mechanical strength, and resistance to moisture and thermal stress. This dual/three-layer wrapping ensures long-term performance even under continuous immersion in water or oil. The wire is highly durable, flexible, and capable of withstanding the rigors of submersible motor operation.
EPR insulated cables confirming / as per IS:9968 Part-1 & II, IEC: 60502, BS:6899 or customer requirement.

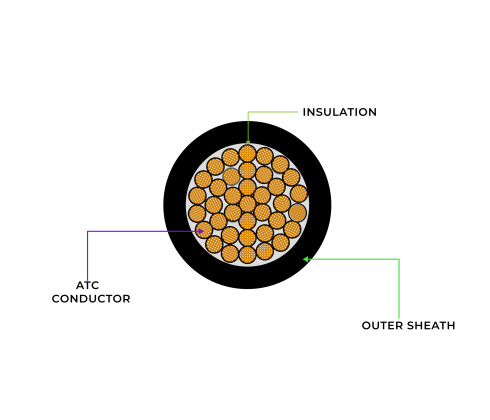

- Conductor : Multi Stranded / Solid Annealed Tinned / Bare copper conductor.
- Insulation : EPR/ EVA/ Butyl/ Silicon.
- Inner Sheath : PCP/ CSP/ NBR-PVC / EVA/ Butyl/ Silicon / LSZH.
- Reinforcement : Nylon / Cotton Yarn Braided.
- Outer Sheath : PCP/ CSP/ NBR-PVC / EVA/ Butyl/ Silicon /LSZH.
- Single Core cables up to 630 Sq.mm.
- Multi Core cables up to 400 Sq.mm.
- Control Cables upto 61 cores.
- Flexibility : Elastomeric rubber cables are highly flexible, making them ideal for use in applications that require constant movement or bending.
- Durability : Elastomeric rubber cables are designed to withstand harsh environmental conditions, such as extreme temperatures, chemicals, and abrasion.
- Resistance to environmental factors : Elastomeric rubber cables are resistant to a range of environmental factors, including moisture, oils, and UV radiation.
- Wide range of applications : Elastomeric rubber cables are commonly used in a variety of applications, including in industrial machinery, robotics, and portable power tools.
- EPR : Ethylene Propylene Rubber.
- Silicon : Silicon Rubber.
- PCP : Polychloroprene.
- CSP : Chlorosulphonated Polyethylene.
- EVAEthylene Vinyl Acetate.
- NBR-PVCAcryionitriie-Butadiene Rubber-Poiyvinyl Chloride.
